Ravi Machine Works

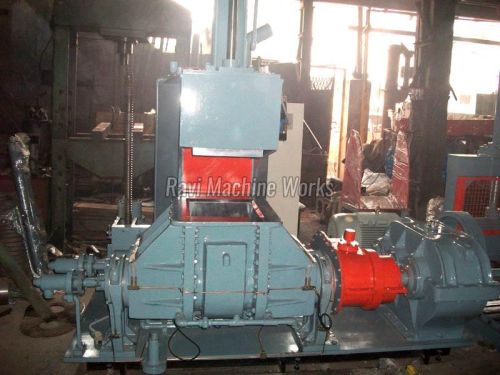

Rear Feed Front Discharge Dispersion Kneader


Rear Feed Front Discharge Dispersion Kneader

These Rear Feed Front Discharge Dispersion Kneaders are extremely long-lasting and are available in customized dimensions and specifications at reasonable prices. Because of having light-weight construction, this Rear Feed Front Discharge Dispersion Kneader is easy to shift from one place to another. We are a reliable Manufacturer and Supplier of Rear Feed Front Discharge Dispersion Kneaders in India.



Specifications

Specification RNA-10 RNA-15 RNA-25 RNA-35 RNA-55 RNA-75 RNA-100 RNA-125 RNA-150
Working
Capacity
(Approx.)
10-15 Kgs. 15-20 Kgs. 25-30
Kgs.
35-40
Kgs.
55-65
Kgs.
75-85 Kgs. 100-110 Kgs. 125-135 Kgs. 150-160 Kgs.
Main Motor (H.P.) 10 20 40 60 75 100 125 150 180
Rotor Revolution (RPM) 32:24:00 32:24:00 32:24:00 32:24:00 32:24:00 32:24:00 32:24:00 32:24:00 32:24:00
Tilting Angle 140° 140° 140° 140° 140° 140° 140° 140° 140°
Tilting Method Screw Type Screw Type Screw Type Screw Type Screw Type Screw Type Screw Type Screw Type Screw Type
Tilting Motor (H.P.) 1 1 2 3 3 5 5 7.5 7.5
Air Comp. (H.P.) 2 2 3 5 5 7.5 10 10 10
Dust Collecter (H.P.) 1 1 1 1 1 1 2 2 2
Dimension (Ft.) 7 x 3.5 x 7 7.25 x 3.75 x 8 10 x 6.75 x 9.25 11 x 7.5 x 10.50 11.50 x 8.50 x 11 11.75 x 8.75 x 11 12.25 x 9 x 11.25 12.5 x 9.25 x 11.25 12.5 x 9.5 x 11.5
Approx. Weight (Tons) 1.5 to 2 2.5 to 3 4.5 to 5 6 to 6.5 7.5 to 8 8.5 to 9 10 to 11 13 to 14 16 to 17
